The 4000FR Series by
Sentry Safety Hardware is designed to:
- Be installed with 6 Screw Bolts (not included)
- Fit doors with a minimum width of 25"
- Meet UL listed safety standards
- Meet 3 hour fire resistance testing
- Meet ANSI/BHMA Grade 1 Panic Exit Hardware high quality standards
- Be available in painted or stainless steel
- Be used with medium to high usage doors
- Be used in single door setup
- Include strikes (latching devices)
- Include a 5/8" (16mm) stainless steel latch bolt
- Include a 5/8" (16mm) stainless steel deadlocking latch bolt
- Include a cylinder lock and pair of keys
- Have a full-length push pad

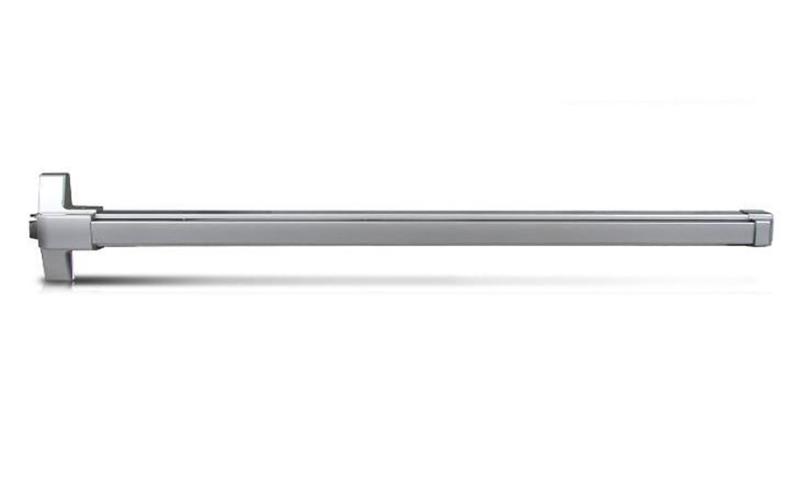

This is a UL listed 3 hour fire rated push type panic exit crash bar.
The 4000FR Series panic exit bar by Sentry Safety Hardware meets high quality and listed safety standards, and is durable and reliable. The 4000FR Series meets the UL listed safety standards, which means that samples of the complete product have been tested against nationally recognized safety standards and have been found to be free from certain risk of fire, electric shock, and other similar hazards. The UL Listing Service is the most widely recognized of these safety certification programs. As a result, users can be sure that this safety device has met accepted and consistently tested safety standards, and will hold up in a number of situations. The safety of this model does not end there, though; this series meets a 3 hour fire resistance test to assure its performance in a variety of situations. Similarly, the 4000FR Series by Sentry Safety Hardware meets the ANSI/BHMA Grade 1 Panic Exit Hardware high quality standards. This means that this model meets precisely defined criteria concerning performance characteristics, physical properties, test values, safety criteria, etc. Product grades are defined according to performance in each ANSI/BHMA standard, with Grade 1 being the highest grade. So, not only does this series meet high safety standards, it also meets high quality standards, ensuring that the device will function properly time after time.
The 4000FR Series by Sentry Safety Hardware gives the consumer choices in appearance and functionality as well. It is available with a painted (4000FR) or stainless steel (4000FR-S) finish. The 4000FR Series is perfect for medium to high usage areas. Likewise, the cylinder lock permits the user to install the appropriate accessories so the door can be opened from the outside. The cylinder lock connects to the internal mechanisms of the push bar by way of a 2 3/4" hole in the door.
*Dogging - a feature that locks the bar in a depressed position so that the door can be opened from either side, and eliminates the necessity of engaging the internal mechanisms. Allen Key dogging is engaged with an allen wrench, while knob dogging is engaged by a knob built into the bar.
*Semi-length - the push/press part of the bar only extends for part of the full length of the bar.
*Full-length - the push/press part of the bar is the full length of the bar.
*ANSI/BHMA Grade Standards - the Builders Hardware Manufacturers Association (BHMA) is accredited by the American National Standards Institute (ANSI) to determine criteria for the performance and safety of certain products, such as panic exit devices.
*Mag Lock - an electromagnetic locking device.
*Strike - the component of the panic bar that goes on the door jamb; the locking mechanism engages this part to shut the door.
*Single Door Application - the bar is designed for a single door set up; however, most bars are compatible with the appropriate dual door model so that one door will have a panic exit bar with vertical rods, and the other will be a panic exit bar for single door applications.
Panicexitpro.com offers a comprehensive product range to control the movement of entry/exit point doors. It is essential for building owners to be able to strike a balance between opening security, safety and durability at a cost that meets business objectives. Panicexitpro.com products are designed to meet the most common installation and application requirements in the commercial marketplace so that these products exceed the needs of customers who value reliable door control products, excellent service, and prompt delivery. To this end, all panicexitpro.com emergency push bars are designed of the highest quality materials. The working internal mechanisms contain no plastic components, while the cover and chassis are made of stainless steel.
Sentry Safety Hardware is the premiere brand for panic crash bars, door closers and electronic entrance accessories. Our wide selection of tested and certified panic crash bars have been installed in hundreds of businesses across the U.S. and world. Certification helps business owners obtain a positive fire inspection report but equally as important: these certificates also convey the vigorous testing each of our models have been put through. Additionally, Sentry E. Labs accessories: exit buttons, strikes and locks are fully compatible with Sentry panic crash bars and door closers. When installing an exit system using our product line, you can take comfort in knowing that Sentry Safety Hardware and Sentry Electronics Labs products will uphold the quality safety standards set forth by our founders.
QB ID: HR5000-1P
