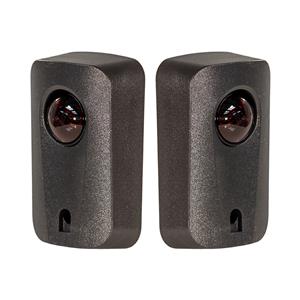

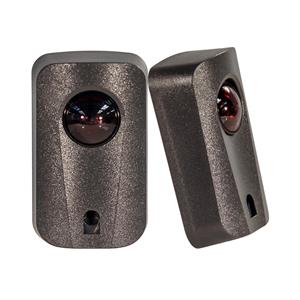

The Safety Egg Beam Sensor Photoelectric Infrared Barrier Detector (BS-IR30) is a photoelectric sensor designed to provide hands-free exit activation for electronic door locking and access control systems. The sensor emits an invisible infrared beam that triggers a relay when interrupted, sending a signal to a compatible central access control device, commonly referred to as a "nucleus." The nucleus device then activates the connected electronic locking device, allowing authorized exit without requiring a physical push button or keypad interaction. This makes the Safety Egg a cost-effective solution for adding convenient, touch-free exit functionality to secured residential and commercial doorways.

The Safety Egg operates using either 12V or 24V DC power and must be paired with a compatible nucleus device because it does not contain a built-in timed relay. The external access control device manages the duration of the door release, allowing the sensor to function as part of a complete electronic locking system. In addition to triggering door release, the BS-IR30 can be integrated with a compatible automatic door opener to help prevent accidental door closures while people are passing through the entrance. Its infrared beam detection provides a simple way to incorporate hands-free activation and additional door safety functionality into an existing access control setup.

• Safety Egg Beam Sensor Photoelectric Infrared Barrier Detector (BS-IR30)

The Safety Egg BS-IR30 requires a compatible nucleus device with a timed relay to manage electronic door lock release. Compatible options include:

• Keypad
• Proximity Card Reader
• GSM Intercom
• Timed Relay
• Automatic Door Opener – For additional door activation and safety functionality

Compatible Power Supplies

The Safety Egg operates on 12V or 24V DC power. Compatible 12V DC power supply options include:

• Sentry E. Labs Transformer
• Sentry E. Labs Transformer with Battery Backup

Note: The Safety Egg BS-IR30 does not have a built-in timed relay and cannot independently control electronic locking devices. A compatible nucleus device with timed relay functionality is required to manage door release activation.
