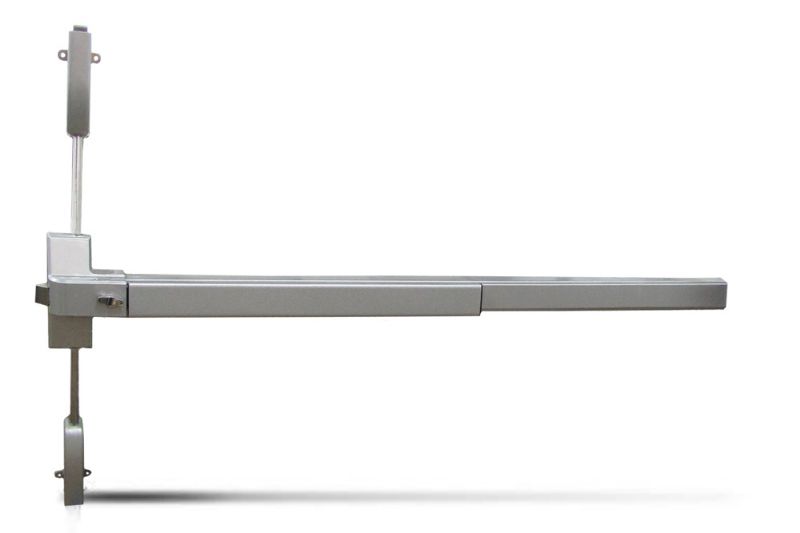

Sentry Safety 1300 Series Single Door High Security Surface Mount Panic Bar

$149.00 In Stock
Quantity:


Bulk Discounts of 20% Off
Product Details

Postive Where to use this panic exit bar:

• Glass doors with a stile (metal frame) of at least 2" or 4" if using outside access such as cylinder lock or handle.
• Steel, wood, and composite solid face doors
• Doors with a max height of 7 feet tall (or 8 foot tall with purchase of extended rod)
• Doors with a maximum width of 40"
• Doors with a minimum width of 25"
• Doors with a maximum thickness of 3 3/8"
• Any door usage frequency
• Single doors, dual doors with mullions
• Doors needing high holding force. The 3 point latching system will latch to the side, the top and bottom of the door frame.

Negative Where not to use this panic exit bar:

• Dual doors without mullions - because of the 3 point latch. Use a 2 point latch panic bar. Click here for a 2 point latch panic bar
• Not UL certified, don't use if UL certification is needed for inspection. Click here for UL rated bars
• Not fire rated, not to be used on a fire break. Click here for a fire rated bar
• Cannot release a magnetic door lock, if door is held locked by a magnetic lock do not use this panic bar.Click here for a micro switch panic    bar

Features and Inclusions:

• Rim type, simple surface mounting
• Includes steel strike for the door frame and latches for top and bottom of frame
• Can be used right or left-handed
• Trim-able down to 25" wide
• Designed for added security by providing a 3 point latch system.
• Includes cylinder lock for outside.
• Can be used with handles or other external access.

1300 Series

1300 Exterior View
Exterior View



Assembly Tips

Trimming the panic bar to size:
The panic bar beyond the push pad is hollow square tubing. The bar comes from the factory 40" long. To modify this length simply cut the excess tubing off the end of the bar that you do not need. There is an included cap that will go on the end of the panic bar where the end is cut. Cutting can be done with a hacksaw and can reduce the length of the bar to 25".

Right or left hand mounting:
To switch mount remove the head cover from the bar by removing the four screws. Unscrew the flathead screw that is below the spring to disengage the top piece from the panic bar. Loosen the screw the spring is attached to and remove the spring. Engage the spring to the opposite screw, tighten and attach to the opposite hole. Screw the flathead screw on the opposite side to reengage the top piece to the panic bar.

Latching and mounting:
This panic bar is surface mounted. The panic bar will be placed on the rear face of the door. The rods lead to latches at the side of the door frame.This bar is specially designed for security and also latches on the top and bottom of the door frame. On the top will be a surface strike and on the bottom of the door a floor keeper that will allow a drop pin to go into the floor through a hole in the center of the floor keeper. The strike goes on the door frame behind the door, not on the inside of the frame where you may have previously had a handle. On the door if you previously had a handle that will need to be removed. Caps are available for the hole left behind after the handle is removed. Door jamb brackets are also available to cover where the old handle latched to the frame. Mounting bolts are provided however depending on the material the door is made of you may switch to the same diameter in wood screws, self-tapping metal screws, or for added strength - sex bolts (sex bolts have a female side on the outside of the door and a male side on the inside of the door and then they join in the middle of the door, Because both faces of the door are used for securing the bar it makes for a very strong hold.)Cylinder release:
This panic bar comes with an exterior cylinder for releasing the panic bar from the outside. There is a drop-down option to receive a keyed-alike cylinder for the painted version of this series. Keyed alike would allow multiple panic exit bars to be opened with a single key. If purchased otherwise all panic exit bars will have their own key. The key release from the outside is just a momentary release. The turn of the key does not dog the door, the panic bar is spring-loaded and returns to the locked state when the key is removed.

Locking and Dogging:
This panic exit bar comes with a lock cylinder for the outside of the door. The key, as it is turned, will momentarily release the panic exit bar. The key is spring loaded and the latch will immediately latch again as the key is released. This panic bar is equipped with Allen key doggingDogging is a method of leaving the panic exit bar unlatched for free entry through the door. Allen key dogging is a secure method of unlatching the panic exit bar. Although an Allen key is a common tool it is something most individuals would not have on them. With the alternate method of dogging, knob dogging, anyone can walk up and flip the knob and the panic bar would be unlocked. When the Allen key is inserted and turn the latch on the end of the panic bar is retracted and held retracted until the key is turned back again.

Optional products associated with this bar (purchased separately):
Outside door handle with key release. If you need access from outside you must buy this accessory or the door will only be able to be opened from the inside using the panic bar. The handle is key lockable. If you unlock the door on the outside to operate the handle you must then relock the door for the handle to not open the door. Some keys you can turn, and they are spring-loaded to return to locked position however this is not one of them. The key will not disengage the panic bar, only engage or disengage the handle, which then the handle disengages the panic bar. The keyed lever handle is available in keyed alike.

Surface Mounted Electric Strike. This is another method for releasing the door from outside or from a remote location. The electric strike replaces the provided mechanical strike. When the electric strike is not being triggered the panic bar engages it the same as it would a mechanical strike. However when you trigger the electric strike with an access device the door can then be pulled open from the outside. An access device can be a keypad, a card reader, an intercom, a desk push button, a receiver/remote control or even a GSM cell phone receiver. Keep in mind if you purchase the electric strike you will also require a pull handle for the outside of the door and access devices.

Door Closer. There are a couple of variations of door closers with a few different features however the main purpose is the same; to make sure the door stays closed. Because this door will always latch to the strike this is a popular addition to ensure the door stays closed and locked.


QB ID: 583S-1300
