Sentry Safety Exterior Door Lever Handle Lock
$111.49
Sentry Safety Pull Handle Set for Dual Doors
$60.98
Sentry Safety 500/520 Series Panic Exit Dual Door Application - P (Painted)
$180.30
Quantity:
Please Select an Option:
P (Painted)
S (Stainless Steel)
What's Included?
The following panic exit bars are both included within this dual door application:
500 Series
Panic Exit Bar by Sentry Safety
520 Series
Panic Exit Bar by Sentry Safety
About Dual Door Applications
When it comes to dual door applications one of the key things to be aware of is which door functions as the
p
rim
ary
and which will function as the
secondary
. Both of the bars within this package have a pre-designated function; the p
rim
ary panic exit bar is designed to be the first to open. In order for the secondary door to open, the p
rim
ary must initially be engaged. Since the secondary bar is what complements the dual door function all secondary bars come equipt with a vertical rod.

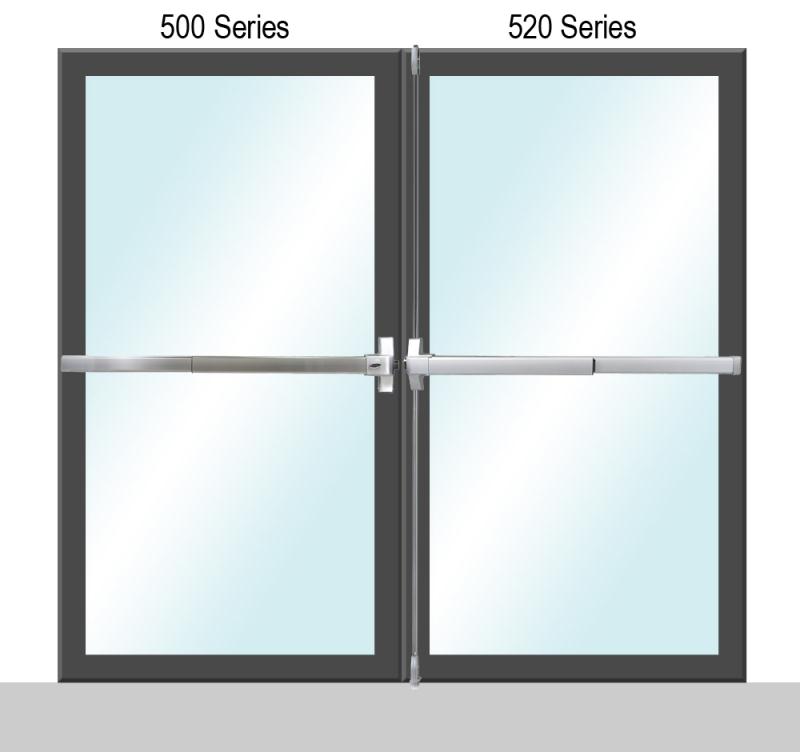

This dual door application features the 500 Series Panic Exit Bar as the p
rim
ary and the 520 Series Panic Exit Bar as the secondary.
Product Details
The 500 Series (p
rim
ary) is designed to:
Be installed with 6 Screw Bolts (not included)
Fit doors with a minimum width of 25"
Be equipped with allen key
dogging
Be available in painted or stainless steel
Be used for medium to high usage exits
Be used for a single door setup
To fit 1 3/4" (44mm) thick hollow metal or wood doors
Cylinder lock & key included
Have a
semi-length
push pad
Include
strike
s (latching devices)
Include a cylinder lock and a pair of keys
Include an 11/16” (17 mm) stainless steel latch bolt
The 520 Series (secondary) is designed to:
Be installed with 6 Screw Bolts (not included)
Fit doors with a minimum width of 25"
Be available in painted or stainless steel
Include
strike
s (latching devices)
Include a 1/2" (13mm) stainless steel latch bolt
Include 5/8" (16mm) stainless steel deadlocking latch bolt
Include stainless steel vertical rods
Have a
semi-length
push pad
Be used for a dual door setup
Finish Options
Select from
P (Painted)
or
S (Stainless Steel)
.
QB ID:
500-P + 560-P
