Quantity:
Please Select an Option:
P (Painted)
S (Stainless Steel)
What's Included?

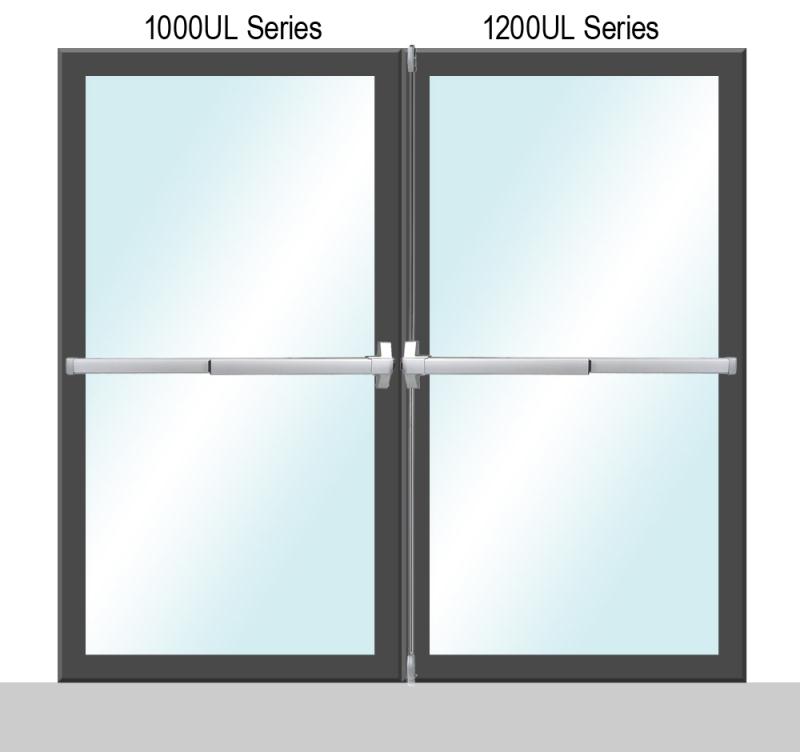

The following panic exit bars are both included within this dual door application:
1000UL Series
Panic Exit Bar by Sentry Safety
1200UL Series
Panic Exit Bar by Sentry Safety
About Dual Door Applications
When it comes to dual door applications, one of the main factors we need to be aware of is which door functions as the p
rim
ary and which door will function as the secondary. Both of the bars included in this package have a pre-designated purpose. The main panic exit bar is designed to be the first to open. For the secondary door to open the p
rim
ary door must initially be engaged. All secondary bars are equipped with a vertical rod since this is what compliments the dual door function. Included in this package would be the 1000UL (p
rim
ary), and 1200UL Series Panic Exit Bars (secondary).
Product Details
The 1000UL Series (p
rim
ary) is designed to:
Be installed with 6 Screw Bolts (not included)
Fit doors with a minimum width of 25"
Meet the UL listed safety standards
Be equipped with allen-key
dogging
Be available in painted or stainless steel
Be used for medium to high usage exits
Be used with a single door setup
Include
strike
s (latching devices)
Include a cylinder lock and a pair of keys
Include a 1/2" (13mm) stainless steel latch bolt
Include a 5/8” (16mm) stainless steel deadlocking latch bolt
Have a
semi-length
push pad
The 1200UL Series (secondary) is designed to:
Be installed with 6 Screw Bolts (not included)
Fit doors with a minimum width of 25"
Meet UL listed safety standards
Be available in painted or stainless steel
Include
strike
s (latching devices)
Include a 1/2” (13mm) stainless steel latch bolt
Include a 5/8” (16mm) stainless steel deadlocking latch bolt
Include stainless steel vertical rods
Cylinder lock & key included
Have a
semi-length
push pad
Be used with a dual door setup
Have stainless steel vertical rods
Finish Options
Select from
Key Alike
or
P (Painted)
or
S (Stainless Steel)
.
QB ID:
UL500-S + UL560-S
