Sentry Safety 3000/3200 Fire Rate Series Panic Bar For Double Doors - P (Painted)
$273.49
Quantity:
Please Select an Option:
P (Painted)
S (Stainless Steel)
What's Included?

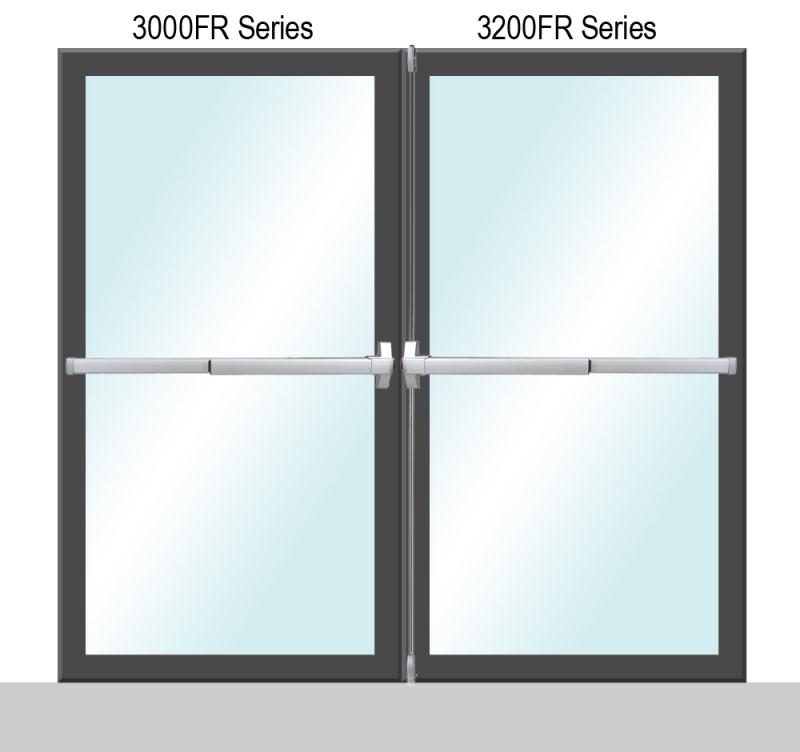

The following panic exit bars are both included within this dual door application:
3000FR Series
Panic Exit Bar by Sentry Safety
3200FR Series
Panic Exit Bar by Sentry Safety
About Dual Door Applications
When it comes to dual door applications, the main factor to be aware of is which door functions as the p
rim
ary and which will function as the secondary. Both of the bars within this package have a pre-designated function. The main panic exit bar is designed to be the first to open. For the secondary door to open, the p
rim
ary must initially be engaged. Since the secondary bar is what complements the dual door function, they come equipped with a vertical rod. This dual door application features the 3000FR Series Panic Exit Bar as the p
rim
ary and the 3200FR Series Panic Exit Bar as the secondary. These bars are fire-rated, meaning they pass the 3-hour fire resistance test. Exit only.
Product Details
The 3000FR Series (p
rim
ary) is designed to:
Be installed with 6 Screw Bolts (not included)
Fit doors with a minimum width of 25"
Meet UL listed safety standards
Meet 3 hour fire resistance testing
Meet
ANSI
/
BHMA
Grade 1 Panic Exit Hardware high quality standards
Be available in painted or stainless steel
Be used for medium to high usage doors
Be used for a single door setup
Cylinder lock & key included
Include
strike
s (latching devices)
Include a 5/8" (16mm) stainless steel latch bolt
Include a 5/8" (16mm) stainless steel deadlocking latch bolt
Have a
semi-length
push pad
The 3200FR Series (secondary) is designed to:
Be installed with 6 Screw Bolts (not included)
Fit doors with a minimum width of 25"
Meet UL listed safety standards
Meet 3 hour fire resistance testing
Meet
ANSI
/
BHMA
Grade 1 Panic Exit Hardware high quality standards
Be available in painted or stainless steel
Be used for medium to high usage doors
Be used for dual door setup
Include
strike
s (latching devices)
Include a 5/8" (16mm) stainless steel latch bolt
Include a 5/8" (16mm) stainless steel deadlocking latch bolt
Include stainless steel vertical rods
Have a
semi-length
push pad
Finish Options
Select from
P (Painted)
or
S (Stainless Steel)
.
QB ID:
HR5000-P + HR560-P
